Barrier tube for ink (TYPE 1 : for Solvent / Water Barrier Hybrid tube)
 |
Link to another type |
 |
 |
Features
- Inner layer is made of barrier fluoropolymer.
- High resistance and repellency to solvents, chemicals, and oil .
- Super barrier properties against solvents and water inhibit changes in the composition of the fluid in the tube.
- Hybrid tube structure offers flexibility unparalleled by any other fluoropolymer tube.
- Tube size : 2 to 6 mm in internal diameter
- Tube color : Natural, black
Applications
- Pipes used to transport paints, inks, and solvents
- Tubes used in food and drug manufacturing equipment to transport food dyes, binding agents, distilled water, and other fluidsk
- Pipes used to transport chemical solutions for LCD and organic EL panel production

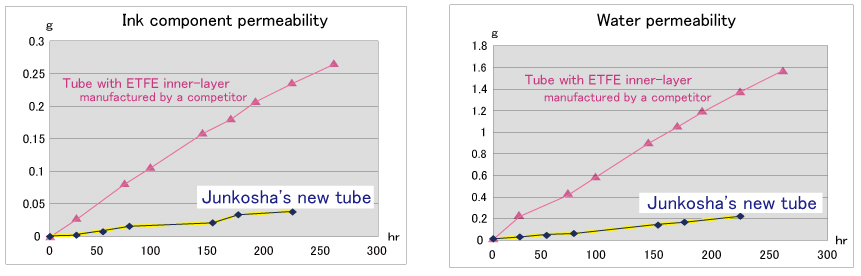

Barrier performance against solvents and water
Comparison of flexibilities
Each sample tube (6 dia. x 4) was bent into a U-shape and the repulsive force was measured as the bending radius
changed from 50 mm to 10 mm.
