Microwave Coaxial Cable Assemblies
JUNFLON® MWX products are flexible signal transmission lines that take advantage of the remarkable properties of fluoropolymers. They are suitable for use with a wide range of frequencies up to 120 GHz.
These products feature low insertion loss and low VSWR, low signal leaks and low interference due to high shielding effectiveness, and higher density wiring for use in the narrow device interiors.
Junkosha provides highly reliable products for microwave/millimeterwave applications tailored to customer assembly needs.
MWX0 series: Phase stable type for measurement
 |
Special site for newly developed 3.5mm connector Multi-Lock type
|
|
| Link to another series |
 |
 |
 |
 |
 |
MWX0 series World-class cables with high phase stability when subjected to bending and fluctuating temperatures in a microwave measurement environment
The cables are protected by armored sheathing for excellent mechanical properties.
Major applications
- Microwave measurements with an emphasis on high phase stability when subjected to bending and fluctuating temperatures
- Calibrations requiring high reliability in phase stability
Cable types
| Cable name | Maximum usable frequency |
|---|---|
| MWX021 | 26.5GHz |
| MWX051 | 50.0GHz |
| MWX061 | 67.0GHz |
| MWX071 | 70.0GHz (NEW) |
| MWX001 | 110.0GHz (NEW) >>Go Special page |
| MWX002 | 120.0GHz (NEW) |

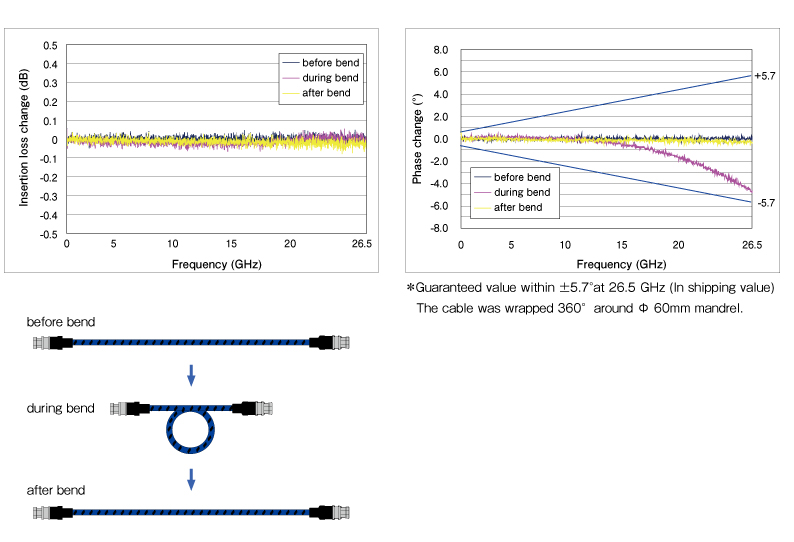

MWX021 Static bending data (Bending radius : 30mm)
