Microwave Coaxial Cable Assemblies
JUNFLON® MWX products are flexible signal transmission lines that take advantage of the remarkable properties of fluoropolymers. They are suitable for use with a wide range of frequencies up to 67 GHz.
These products feature low insertion loss and low VSWR, low signal leaks and low interference due to high shielding effectiveness, and higher density wiring for use in the narrow device interiors.
Junkosha provides highly reliable products for microwave/millimeterwave applications tailored to customer assembly needs.
MWX1 series: Heat-resistant type for measurement & High-durability type for measurement
MWX121 : Heat-resistant type for measurement
MWX121 Cable assemblies are supporting a wide operating temperature range (from -65 to +125 degrees C) of microwave measurement environment.
Major applications
- Microwave measurements requiring compatibility with broad temperature range for applications like device evaluations
- Inspections requiring high durability

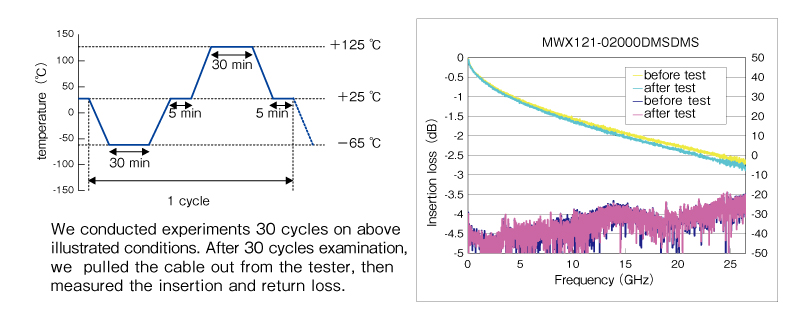

Thermal shock test
MWX122 : High-durability type for measurement
MWX122 is the high performance microwave cable assembly which is best optimized for vector network analyzer.
Its extraordinary durability in use of measurement test eventually leads to total cost reduction.
New cable structure and strain relief with torque canceller were developed by simulation of actual measurement motion.
These bring excellent durability to MWX122.

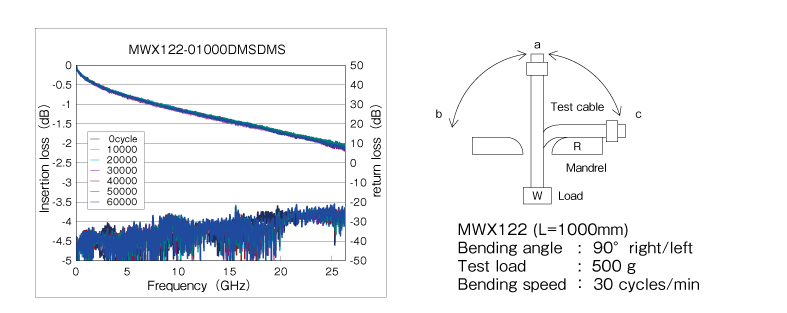

Bending test data
Cable types
 |
| Link to another series |
 |
 |
 |
 |
 |
| Cable name | Maximum usable frequency |
|---|---|
| MWX121 | 26.5GHz |
| MWX122 | 26.5GHz |
